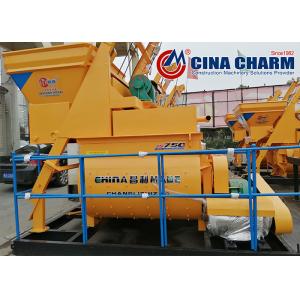

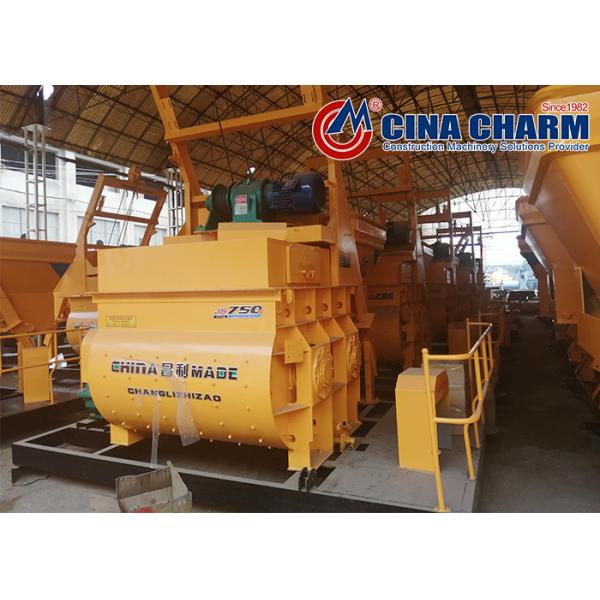

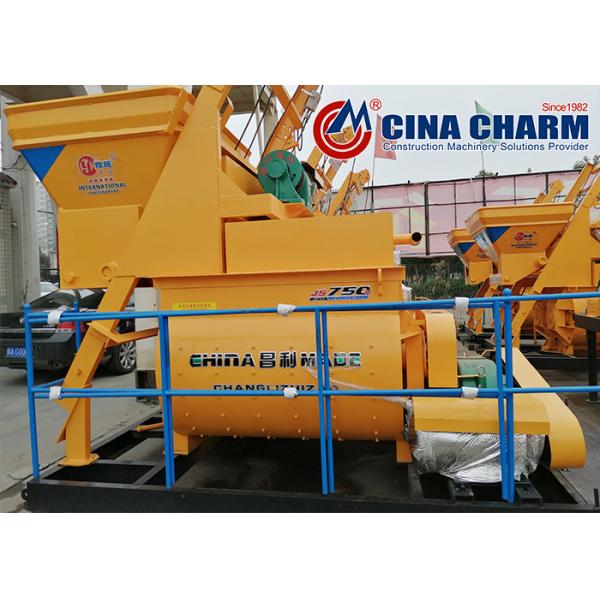

Hot sale factory direct price JS750 Heavy Duty Industrial Horizontal Concrete Mixer machine
JS series concrete mixer which is twin shaft forced concrete mixe, this machine can work as a single indepenent operation and with PLD series batching machine it can be composed of a small mixing station, and it also can provide ingredients for the mixing station.
It is suitable for all kinds of large,small prefabricated plants, highwasy, bridges,water conservancy, dock and other industrial and civil engineering, it is able to mix dry-hard concrete, plastic concrete, light-weight aggregate concrete and all kinds of mortar, is a high efficiency model, which is widely used.
| Product name | Concrete mixing machine |
| Discharge capacity | 750L |
| Feed capacity | 1200L |
| Stirring speed | 32.6r/min |
| Stirring power | 30kw |
| Suction pump power | 1.1kw |
| Shape size | 8980mm*2591mm*5842mm |
| Productivity | 30-35m³/h |
| Weight | 9000kg |
DescriptionJS series concrete mixer is known by advanced design and reliable performance, widely applied in road, bridge, dock, terminals constructions .
1.It stirs materials more informally with twin shafts running in opposite direction.
2.The floating shaft seal prevents leakage of slurry effectively.
3.Planetary gear adopted making the performance more reliable.
4.Easy operation, small residual capacity, and convenient cleaning.
This series machine is the latest type compusory-typed concrete mixer which was researched and developed by our scientific researcher and some experts,main features such as:
1. Fixed tank and chassis,mixing shaft no longer bears the weight of materials and the tank's pressure, thus extending the life of the mixing shaft.
2. It adopt automatic opening discharge,avoid the shortcomings of raw material retentin during rotation tank discharging .
3.Clean and fast discharge.
4.It is easy to maintenance,may save time,labour and attractive apperances.
5. High productivity.This series machine may mix plasticity concrete and subarid rigid concrete ,flowability concrete,light aggregate and mortar. Once it is combined with batching machine,it will be formed medium and small scale concrete batching plant,which applies to highway,bridge,engineer dam,large and medium scale prefabricated factory.
JS750 twin shaft mixer is a horizontal shaft concrete mixer, which can can work independently, also can be composed the concrete mixing plant with other matched equipment. It can mix dry and hard concrete, plastic concrete, light aggregate concrete and all kind of mortar, it is one kind of high efficiency, widely used construction machinery. It owns reasonable design, and its mechanical accessories used industry standard parts, and its maintenance is much convenient.
JS series concrete mixer is twin-shaft compulsory concrete mixer, which can mix subarid rigid concrete, plasticility concrete, flolwability concrete, light aggregate concrete and various mortar. Drum sets with wear resistant cast liner and mixing blade, which is durable and easy to replace. It applies to various kinds of large & medium scale prefabricated factories and all kinds of construction sites.
High degree of automation liner and blade long service life High efficiency, low energy consumption, low noise, strong bearing capacity and high stability.
