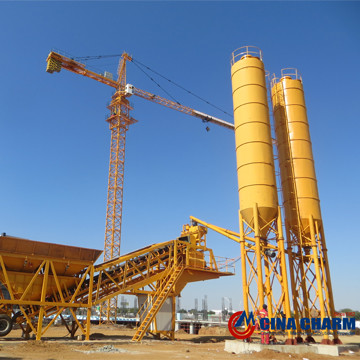

35m3/h Mobile Concrete Batching Plant YHZS35 Cement Mixing Plant

YHZS35 Cement Mixing Plant 35m3/h Mobile Concrete Batching Plant

Mobile Concrete Batching Plant Of Introduction

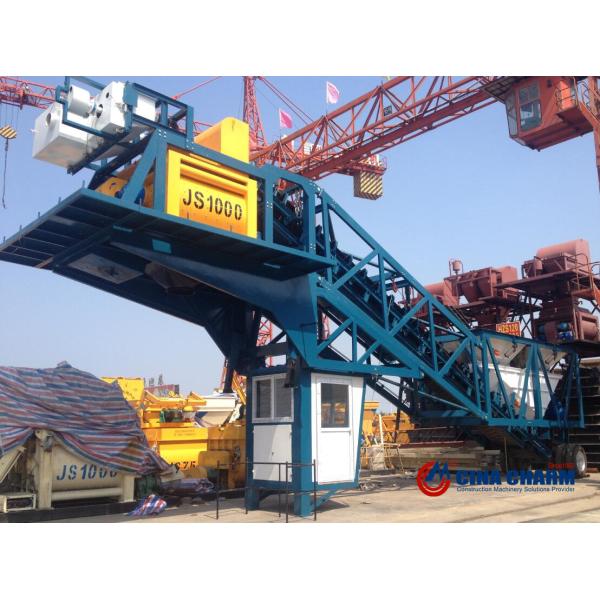

Mobile batching plant is a concrete mixing equipment which integrates the material storage, weighing, conveying, mixing, discharging and automatic control system of traditional fixed concrete mixing plant into a single trailer unit; it is identical with all production processes, operation modes and maintenance methods of fixed automatic mixing plant; meanwhile, it has the advantages of flexible movement, quick disassembly and easy storage It is a good model for mobile construction of highway, railway, bridge, port, hydropower and other projects.

Mobile Concrete Batching Plant Of Details
1. Main engine chassis: it is a cantilever mixing main engine chassis, which contains Trailer Truck traction pin and parking leg; the metering scale of mixer, cement and water admixture is placed on the chassis; inspection platform and railings are attached around the chassis.

2. Control room: the control room is at the bottom of the chassis of the main engine, which is equipped with the full-automatic control system of the mixing plant. The control system is the same as that of the fixed mixing plant. In the working state, the control room is used as the front support point of the whole plant. During the transit transportation, the control room is folded and stored in the support space, and all its control lines do not need to be disassembled.

3. Aggregate batching and metering: the system is located at the rear end of the whole plant, and the upper part is aggregate (sand, stone) storage hopper, which can be divided into 2 or 4 grids, and is equipped with heightening plate to increase the storage capacity. The pneumatic door is opened in turn, and the aggregate metering is the cumulative metering mode of various materials. The bottom is equipped with walking rear axle and working frame outrigger.

4. Belt conveyor frame: the frame is a truss structure connecting the chassis of the main machine and the aggregate batching frame, with a belt frame inside; the main frame, the belt frame and the batching frame are integrated to form the main structure of the whole Mobile concrete batching plant.

5. Peripheral parts: cement silo and screw conveyor. The peripheral parts are integral parts no matter when they work or transport, so they do not need to be disassembled, so they can be transported and disassembled as a whole.

6. Mixing machine: JS type forced mixer is generally used, which can quickly and evenly mix the flowing and dry hard concrete.

FAQ

1.Do you provide after-sale service?
Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.It usually takes 1-3 days for training , 10-15 days for installation,1-2days for commission,1-2days for pre-operation.
2.Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
3.Can you test our samples?
Yes. You can send your samples to us for test and analysis.
4.How long it takes to do all the installation
It's at most 5days processing and manufacturing for single machine,for production line,at most 15days.
5.Can we visit your factory?
Yes. You can visit our factory at anytime you want.

35m3/h Mobile Concrete Batching Plant

YHZS35 Mobile Concrete Batching Plant

YHZS35 Cement Mixing Plant

35m3/h Mobile Concrete Batching Plant YHZS35 Cement Mixing Plant Images
